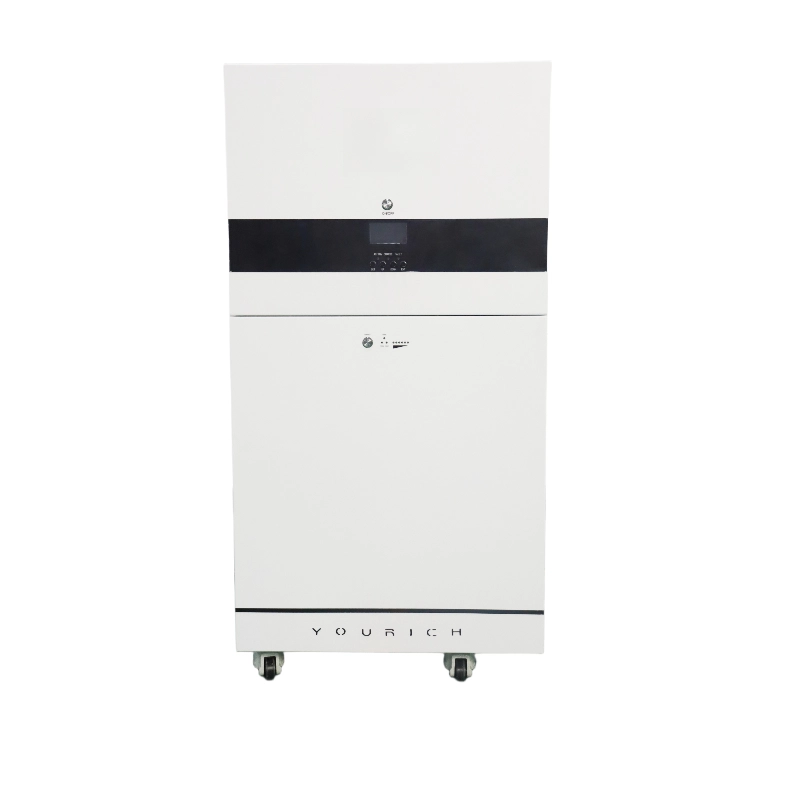

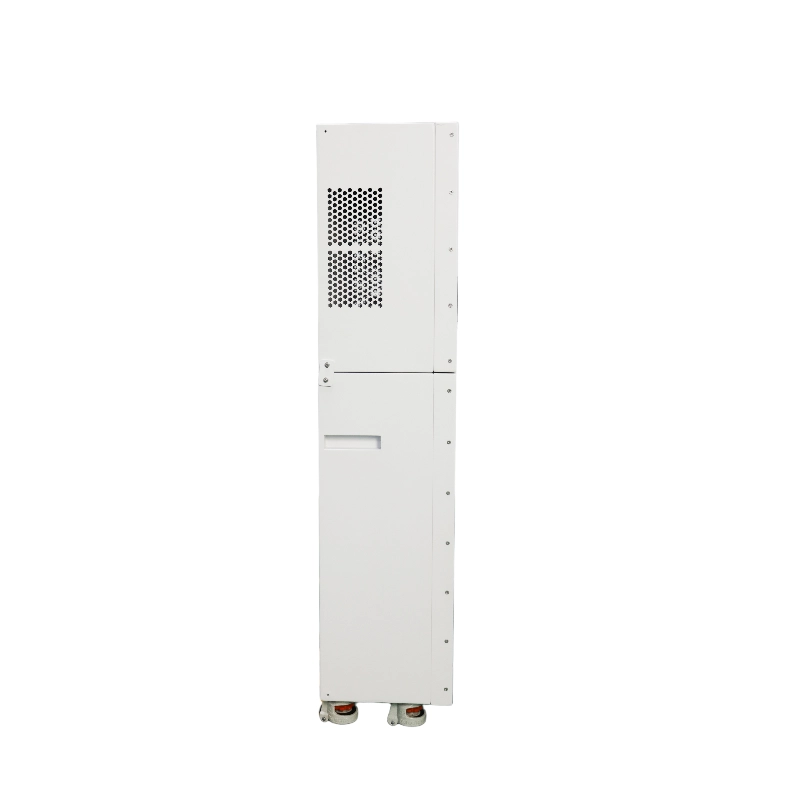

Movable All-in-One Energy Storage System with efficient inverters and advanced BMS, offering a full plug-and-play solution. Featuring heavy-duty rolling wheels and built-in sockets, this portable system differs from fixed ESS and provides instant backup power for home outages, construction sites, camping and emergency rescue applications.
Какие ключевые детали следует учесть?

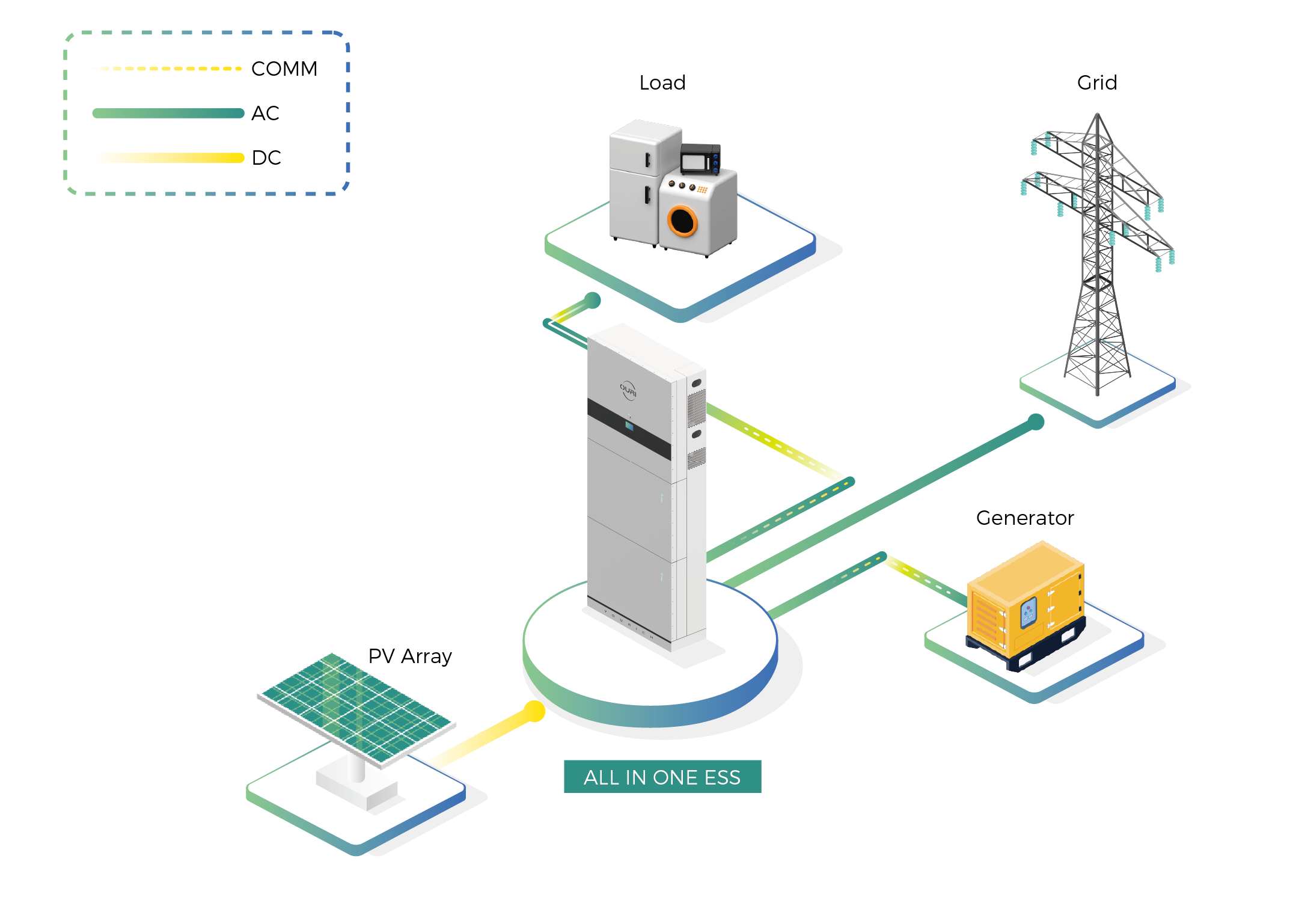

How Does This Energy Storage System Work?
Why Choose Our Movable All-in-One ESS?
-
Various Capacity Options
5kWh/10kWh/16kWh capacity variants, perfectly fitting diverse power demands from daily small appliances to high-power equipment.
-
Effortless Mobility
Equipped with heavy-duty universal rolling wheels, easy to move between indoor & outdoor scenes without extra handling tools.
-
Instant Plug-and-Play
Built-in standard AC sockets, direct power supply for devices with no adapters needed, one-step startup for quick use.
-
Safe LiFePO4 Battery
High-quality lithium iron phosphate cells with thermal stability, long cycle life and full protection, ensuring industrial-grade safe output.
-
All-in-One Integrated Design
Integrates energy storage, inversion and distribution in one compact body, no assembly required, unpack and use immediately.
-
Intelligent Management
Supports real-time viewing of battery status on the LCD screen, and optional APP for remote monitoring and control.
Параметры продукта
| Battery Product Description | |
| Product Model | AIO5kW-5kWh |
| Cells In Series | 16С |
| Rated Energy (KWh) | 10.54 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 40 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Срок службы цикла | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 600*420*240 |
| Net Weight (Kg) | ~85 |
| Packing Dimensions (L×W×Hmm) | 700*460*280 |
| Gross Weight (Kg) | ~105 |
| Inverter Product Description | |
| Product Model | YR-5048SMH |
| Rated power | 5.0KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | 30 |
| Battery Product Description | |
| Product Model | AIO6.2kW-10kWh |
| Cells In Series | 16С |
| Rated Energy (KWh) | 10.54 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 40 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Срок службы цикла | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 600*420*240 |
| Net Weight (Kg) | ~85 |
| Packing Dimensions (L×W×Hmm) | 700*460*280 |
| Gross Weight (Kg) | ~105 |
| Inverter Product Description | |
| Product Model | YR-6248SMH |
| Rated power | 6.2KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | 30 |
| Battery Product Description | |
| Product Model | AIO6.2kW-16kWh |
| Cells In Series | 16С |
| Rated Energy (KWh) | 16.07 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 60 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Срок службы цикла | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 740*420*240 |
| Net Weight (Kg) | ~130 |
| Packing Dimensions (L×W×Hmm) | 840*460*280 |
| Gross Weight (Kg) | ~145 |
| Inverter Product Description | |
| Product Model | YR-6248SMH |
| Rated power | 6.2KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | 30 |
Решения в действии
-
Используется для добавления производственных фотографий и примеров.
Компания Yourice, приверженная самым высоким стандартам, уделяет особое внимание быстрой и точной доставке, чтобы удовлетворить разнообразные потребности клиентов по всему миру.
-
Используется для добавления производственных фотографий и примеров.
Компания Yourice, приверженная самым высоким стандартам, уделяет особое внимание быстрой и точной доставке, чтобы удовлетворить разнообразные потребности клиентов по всему миру.
