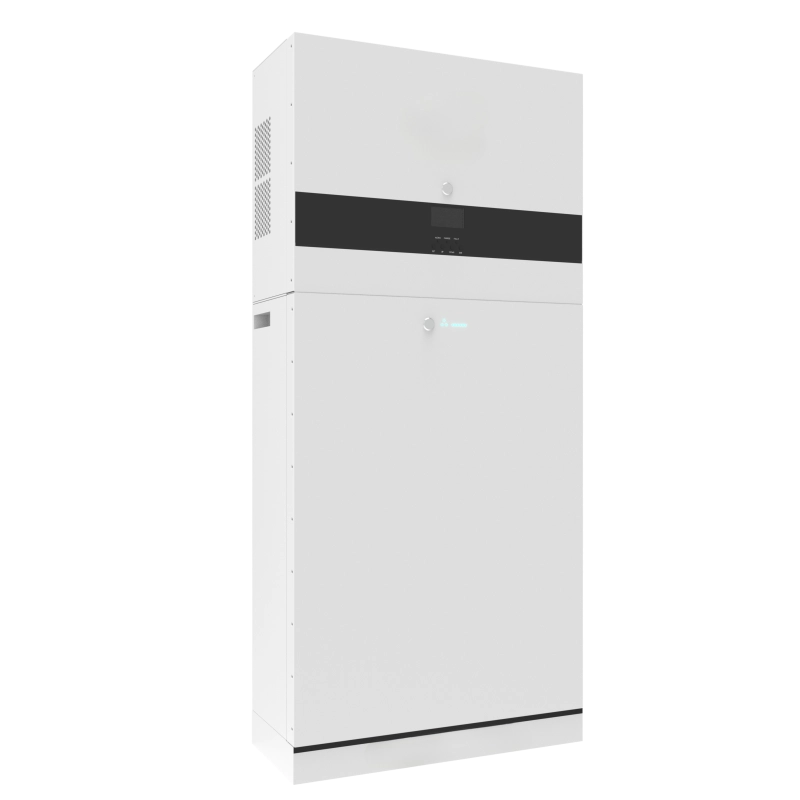

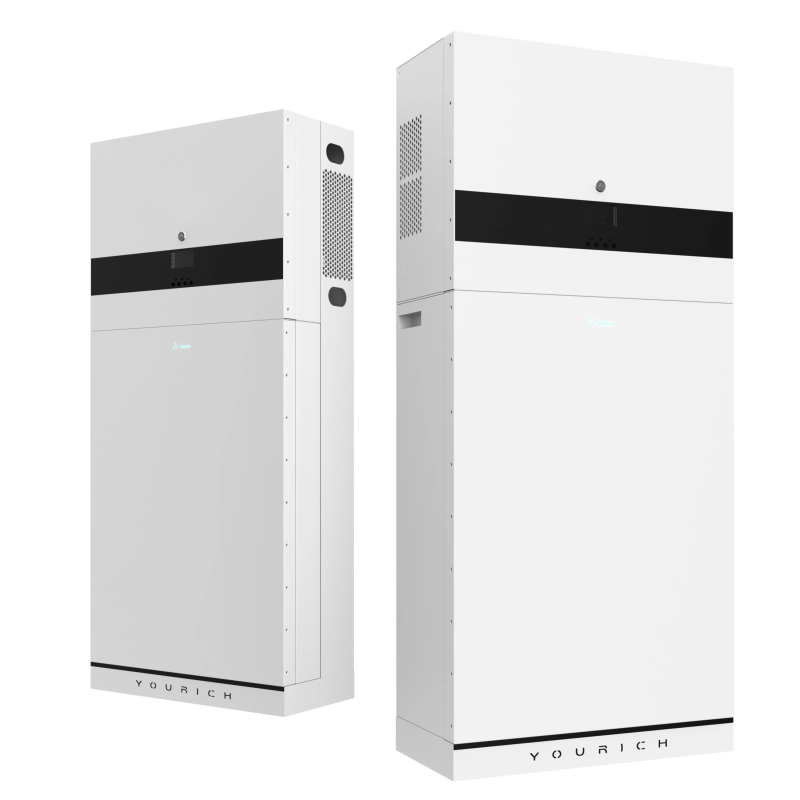

Power your home with confidence. Our 16kWh all-in-one home energy storage system combines advanced lithium iron phosphate (LFP) battery technology, integrated inverter, and smart energy management in a sleek, compact design. Ideal for solar self-consumption, backup power, and off-grid living.
How Does This Energy Storage System Work?
Why Choose Our Home Energy Storage?
-
Space-Saving Integrated Design
All-in-one battery, inverter & control system in a compact unit, cuts clutter and streamlines installation vs split systems.
-
Slash Electricity Bills
Store solar surplus for peak/evening use, avoid high grid tariffs and boost PV self-consumption, long-term household cost savings.
-
Reliable Backup Power
Auto-switch to stored energy during outages, keeps lighting, fridges, WiFi and core home devices running nonstop.
-
Whole-Home Sufficient Power
16kWh expandable capacity meets growing energy needs, supports long-term power for key loads (ideal for daily/off-grid use).
-
Long Lifespan, Low Cost
Premium LiFePO4 technology, 10+ year service life, reduces replacement and maintenance costs.
-
Smart Flexible Energy Control
APP real-time monitoring of generate/storage/consumption, remote mode adjustment to optimize energy efficiency.
Product Parameters
| BATTERY PACK | |
| Product Model | M16S314BL-F |
| Number of Modules | 1 |
| Rated Energy (KWh) | 16.07 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 60 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 740*420*240 |
| Net Weight (Kg) | ~130 |
| Packing Dimensions (L×W×Hmm) | 840*460*280 |
| Gross Weight (Kg) | ~145 |
| INVERTER | |
| Product Model | YR-6248SMH |
| Rated power | 6.2KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | ~30 |
| BATTERY PACK | |
| Product Model | M16S314BL-F |
| Number of Modules | 2 |
| Rated Energy (KWh) | 32.14 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 60 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 740*420*240 |
| Net Weight (Kg) | ~260 |
| Packing Dimensions (L×W×Hmm) | 840*460*280 |
| Gross Weight (Kg) | ~290 |
| INVERTER | |
| Product Model | YR-6248SMH |
| Rated power | 6.2KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | ~30 |
| BATTERY PACK | |
| Product Model | M16S314BL-F |
| Number of Modules | 3 |
| Rated Energy (KWh) | 48.21 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 60 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 740*420*240 |
| Net Weight (Kg) | ~390 |
| Packing Dimensions (L×W×Hmm) | 840*460*280 |
| Gross Weight (Kg) | ~435 |
| INVERTER | |
| Product Model | YR-6248SMH |
| Rated power | 6.2KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | ~30 |
