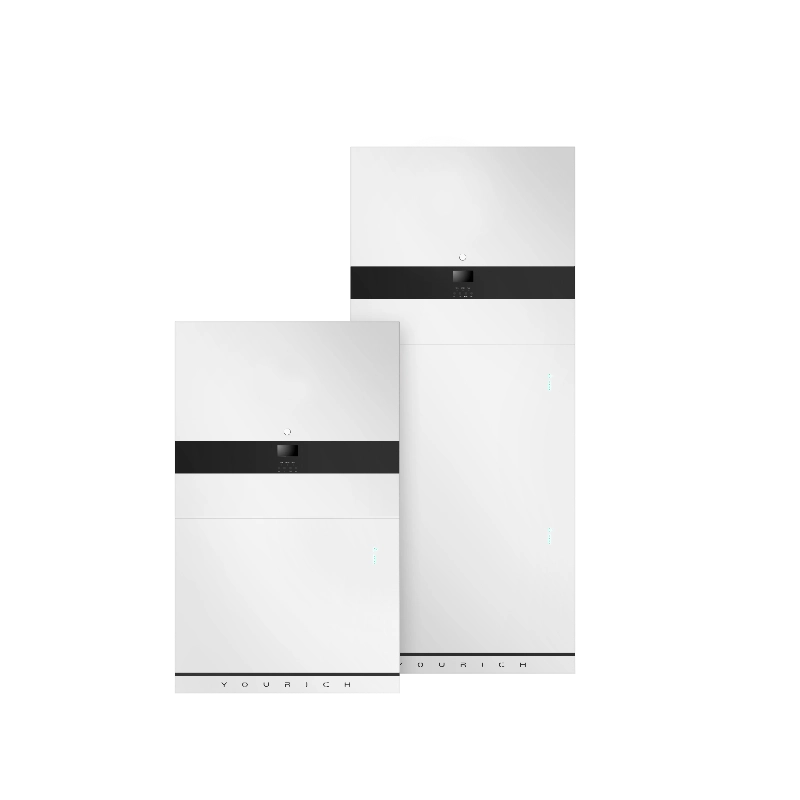

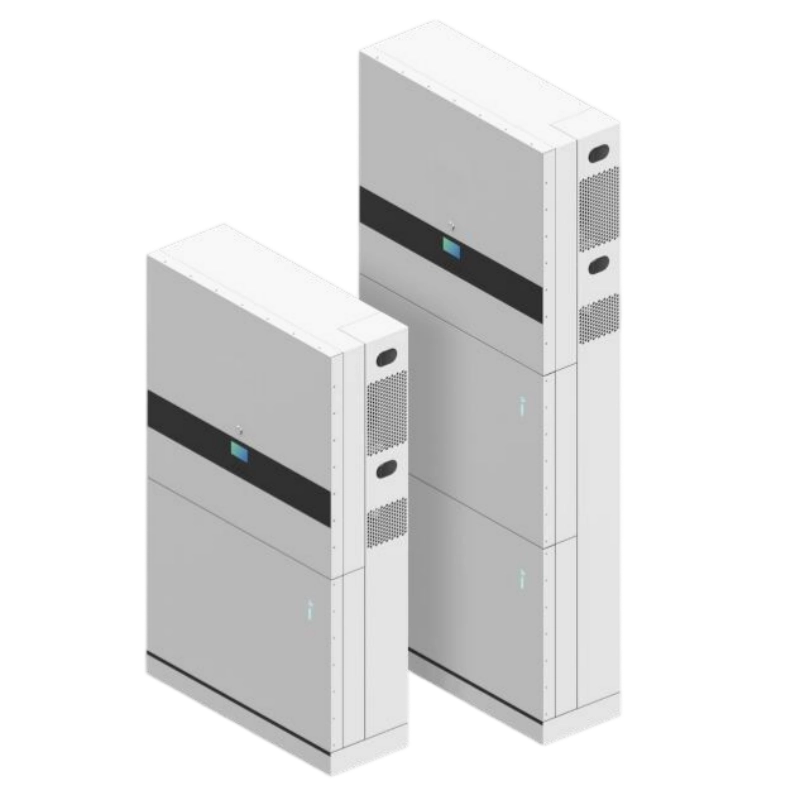

Centered on “integrated design, 10kWh Modular flexible configuration, and efficient energy supply”, it breaks the limitations of the traditional split layout of energy storage devices, integrates the inverter and battery with a stacked architecture, and creates a family energy hub that is both aesthetically pleasing, practical and safe.
What Key Details Should You Consider?
How Does This Energy Storage System Work?
Why Choose Our Scalable All-in-One ESS?
-
Flexible Capacity, No Anxiety
10KWh basic capacity for daily use; expandable on demand without replacing the whole unit, avoiding waste or shortage.
-
Easy & Space-Saving
All-in-One, Integrated core components, compact size, simple installation, fits small household spaces.
-
Off-Peak Storage, Save Bills
Store power off-peak, supply on-peak; compatible with PV, long-term cost-effective.
-
Emergency Power Guarantee
Quick switch to storage power when blackout; basic capacity supports key devices, expandable for longer supply.
-
Safe, Stable & Friendly
LiFePO₄ cells + smart BMS with real-time monitoring and built-in protection—plug-and-play compatible with home circuits.
-
Intelligent Management
Supports real-time viewing of battery status on the LCD screen, and optional APP for remote monitoring and control.
Product Parameters
| BATTERY PACK | |
| Product Model | AIO16S206BL |
| Number of Modules | 1 |
| Rated Energy (KWh) | 10.54 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 40 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 600*420*240 |
| Net Weight (Kg) | ~85 |
| Packing Dimensions (L×W×Hmm) | 700*460*280 |
| Gross Weight (Kg) | ~105 |
| INVERTER | |
| Product Model | YR-6248SMH |
| Rated power | 6.2KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 590*460*280 |
| Gross Weight (Kg) | ~30 |
| BATTERY PACK | |
| Product Model | AIO16S206BL |
| Number of Modules | 2 |
| Rated Energy (KWh) | 21.08 |
| Rated Voltage (V) | 51.2 |
| Charging Voltage (V) | 58.4 |
| Discharge Cut-off Voltage (V) | 42 |
| Standard Charge Current (A) | 40 |
| Maximum Charging Current (A) | 200 |
| Maximum Discharge Current (A) | 200 |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Methods Of Communication | RS485\CAN\RS232 |
| Charging Temperature | 0~60℃ |
| Discharge Temperature | -10~65℃ |
| How It Is Displayed | \ |
| IP Protection | IP 55 |
| Product Dimensions (L×W×Hmm) | 600*840*240 |
| Net Weight (Kg) | ~170 |
| Packing Dimensions (L×W×Hmm) | 700*920*280 |
| Gross Weight (Kg) | 210 |
| INVERTER | |
| Product Model | YR-11048MH |
| Rated power | 11KW |
| Communication Input | L+N+PE(220VAC) |
| Photovoltaic Input | 90-280VAC±3V |
| Battery Input | 56.4VDC |
| AC output | 220/230/240VAC±5％ |
| IP Protection | IP 20 |
| Maximum number of parallel units | 9 |
| Product Dimensions (L×W×Hmm) | 640*720*280 |
| Gross Weight (Kg) | ~40 |
