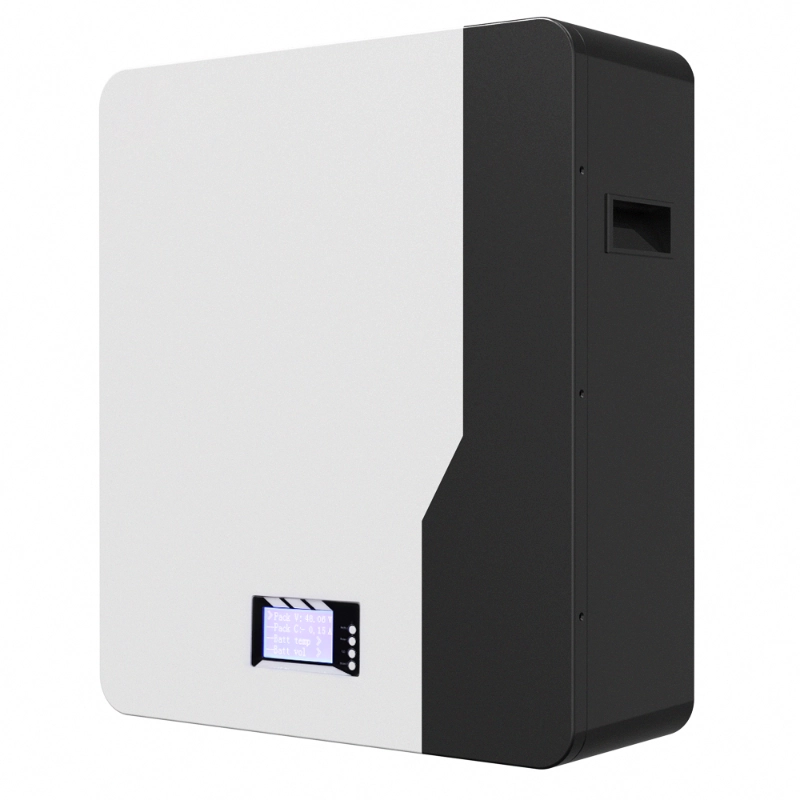

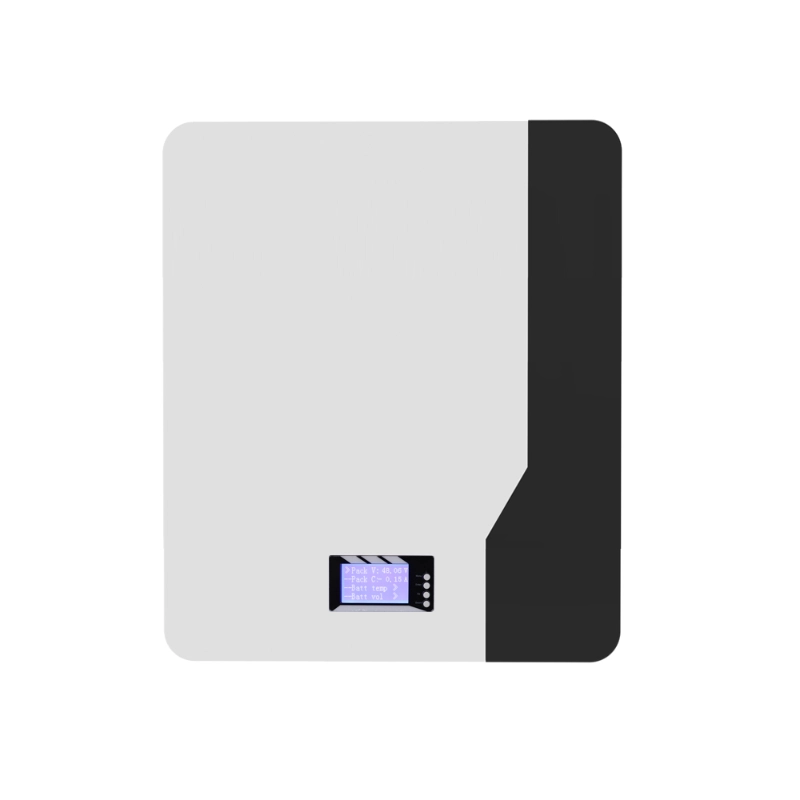

With clean black-and-white color scheme, this M15/16SBL-V seamlessly integrates into home aesthetics, serving as both an energy storage power and home decoration. Equipped with smart BMS monitoring, this series of batteries feature double protection, whose parameters can be monitored in real-time. Widely applied in on and off grids applications, powering homes day and night.
How it Works
Product Advantages
-
Intelligent Communication
RS485 and CAN interfaces optional, connected with inverters&energy management systems
-
Reduce Battery Replacement
Applied in off/on grids application, store and sell excessive power
-
Stable Energy Output
Charge and discharge efficiency of ≥95%,ensuring stable and uninterrupted power supply to the load
-
Optimized Energy Utilization
Integrated with PV systems, enhance household energy autonomy
-
System Operation Monitoring
Supports remote monitoring and real-time data upload
-
Sensitive Switch Ready
Suitable for sensitive equipment and high-frequency switching conditions
Product Parameters
| Battery Type | LiFePO4 |
| Rated Voltage | 48V |
| Rated Capacity | 100Ah |
| Total Energy | 4.8KWh |
| Installation Method | Wall-Mounted |
| Cells in Series | 15S |
| Max. Charging Voltage | 54.75V |
| Discharge Cut-off Voltage | 40V |
| Standard Charge Current | 20A |
| Max. Charge/Discharge Current | 100A |
| Cycle Life | ≥ 4000 times @ 80% DOD, 25 °C |
| Net Weight | 42KG |
| Communication Method | RS485\CAN\RS232 |
| Display Method | Button Display |
| Ambient Temp. |
Charge temp. : 0~60℃; Discharge temp.: -10~65℃ |
| Battery Dimension | 440*186*560mm |
| IP Level | IP21 |
| Battery Type | LiFePO4 |
| Rated Voltage | 48V |
| Rated Capacity | 200Ah |
| Total Energy | 9.6KWh |
| Installation Method | Wall-Mounted |
| Cells in Series | 15S |
| Max. Charging Voltage | 54.75V |
| Discharge Cut-off Voltage | 40V |
| Standard Charge Current | 20A |
| Max. Charge/Discharge Current | 100A |
| Cycle Life | ≥ 4000 times @ 80% DOD, 25 °C |
| Net Weight | 44KG |
| Communication Method | RS485\CAN\RS232 |
| Display Method | Button Display |
| Ambient Temp. |
Charge temp. : 0~60℃; Discharge temp.: -10~65℃ |
| Battery Dimension | 450*206*670mm |
| IP Level | IP21 |
| Battery Type | LiFePO4 |
| Rated Voltage | 51,2 V |
| Rated Capacity | 100Ah |
| Total Energy | 5.12KWh |
| Installation Method | Wall-Mounted |
| Cells in Series | 16S |
| Max. Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 42V |
| Standard Charge Current | 40A |
| Max. Charge/Discharge Current | 100A |
| Cycle Life | ≥ 4000 times @ 80% DOD, 25 °C |
| Net Weight | 83KG |
| Communication Method | RS485\CAN\RS232 |
| Display Method | Button Display |
| Ambient Temp. |
Charge temp. : 0~60℃; Discharge temp.: -10~65℃ |
| Battery Dimension | 440*186*560mm |
| IP Level | IP21 |
| Battery Type | LiFePO4 |
| Rated Voltage | 51,2 V |
| Rated Capacity | 200Ah |
| Total Energy | 10.24KWh |
| Installation Method | Wall-Mounted |
| Cells in Series | 16S |
| Max. Charging Voltage | 58.4V |
| Discharge Cut-off Voltage | 42V |
| Standard Charge Current | 40A |
| Max. Charge/Discharge Current | 100A |
| Cycle Life | ≥ 4000 times @ 80% DOD, 25 °C |
| Net Weight | 87KG |
| Communication Method | RS485\CAN\RS232 |
| Display Method | Button Display |
| Ambient Temp. |
Charge temp. : 0~60℃; Discharge temp.: -10~65℃ |
| Battery Dimension | 450*206*670mm |
| IP Level | IP21 |
Broad Inverter Compatibility
Our systems are pre-compatible with mainstream inverters. We also provide communication protocol support for any inverter brand your market requires.
